DJ2400

DJ2400

  • Multiple-printhead connection, up to four printheads
  • Functional, versatile and competent to diverse printing applications
  • Combination of different printhead systems

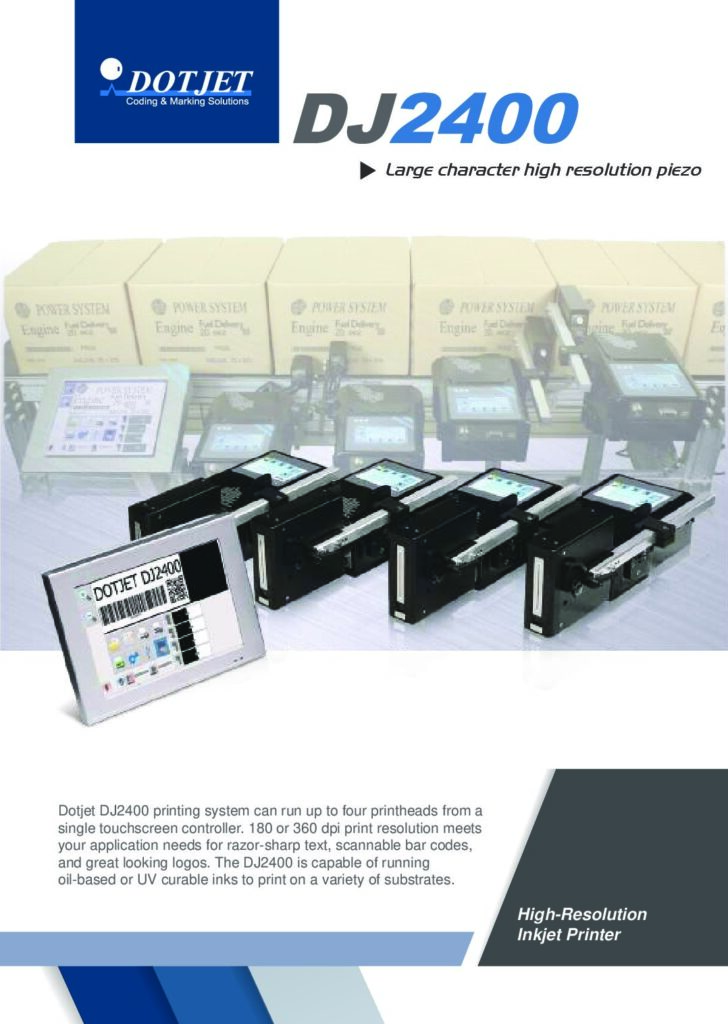

The DJ2400 high-resolution printer system is designed to connect to multiple piezo inkjet printhead systems to an IPC controller. That means, users can create print templates for a larger print location. Direct coding and marking on secondary packaging with the DJ2400 will help users reduce the burden of preprinted boxes and labels. Its IPC controller screen can be remotely monitored and operated through the Dotjet’s Inkjet CMD System.

Flexibility in Printhead Organization
The DJ2400 can be flexibly configured with up to 4 printheads which are controlled by an IPC controller with 12” touch screen through the connection by LVDS cables. The system can be a combination of different printhead systems (72mm or 17.5mm) for single-side or two-side coding and marking. The maximum length of a LVDS cable is 5 meters.

dj2400 02
 Controller
The IPC controller with a 12” full-color touch screen was designed with graphic user interface. Users can operate the controller by clicking on the touch screen, or by using a keyboard, a mouse device like using a computer and other electronic devices. Its full connectivity allows the DJ2400 system to perform perfectly in the advanced applications and the integration into production lines. The installed DotWare QT software brings users friendly operation experience and a simple process to achieve the automating coding and marking. 		dj2400 03

Communication Interface

The DJ2400 has multiple communication interfaces for advanced applications.

  • Communication Interfaces: MySQL, SQLite(.db3, .sqlite), Database (.csv), RS-232, MQTT, TCP/IP, and Dotjet Protocols
  • Able to be remotely monitored and controlled
dj2400 04

Software for Inkjet Printing Applications
The DotWare QT has been designed and developed with a straightforward platform. Editing print template directly and intuitively, operating printing functions easily are the primary concepts of the software. PC version software gives users conveniences to create mass print jobs. More practical applications are brought by the DotWare QT:

  • GS1 barcode printing
  • Full inkjet printing functions
  • Protocol commands
  • Print external data that is sent from an external device
  • Open a file and print via the communication interface
  • MySQL database printing
  • Printer remote control supporting
  • Be integrated with Dotjet’s CMD software system
  • The “Side 1 = Side 2” function to apply one print template to two sides of a box at one time
dj2400 05

Printhead System

The DJ2400’s printhead system contains an independent ink delivery system, physically including a print engine, a control driver board, standalone electronics, controlling software, and an ink supply pumping system that perfectly provides a stable ink supply to the printhead.

dj2400 05

Ink Supply

The design of the ink supply system ensures the easy and contamination-free process of changing an ink cartridge. Besides, a secondary ink tank is installed in the system to keep the printer printing when user is changing the ink cartridge with zero downtime.

The standard capacity of an ink cartridge is 250 ml. An optional bulk ink supply system is available to benefit users more due to the fewer frequency to change ink cartridge, the greater uptime and the lower long-term printing cost.

dj2400 07

Printhead System Operation
Each printhead system works individually to receive data from the DJ2400 controller, then executes printing. Besides, its 5” touch screen provides a friendly interface to operate the ink supply functions and the maintenance, such as splitting ink setup, purging ink, and withdrawing ink.

dj2400 08
Pumping Ink DeliveryThe pumping-ink- delivery system consists of three mini pumps to implement one button for ink priming, purging, and draining. The waste ink is collected automatically into another container to keep the printer system and working environment clean while the ink delivery system is working. dj2400 09

Printhead Technology
Dotjet high-resolution printers adopt SII piezoelectric printhead (72mm) or Xaar piezoelectric printhead (17.5mm), both are the leading brands in the inkjet printhead technology. The printheads are robust and precise. Their capability to print in flexible directions- downwards, vertical and horizontal, gives users the freedom to design and decide the print location on a packaging.

dj2400 10
Optional Heating FacilityTemperature is a major factor of how UV-curable inks perform. When the environment temperature is low, the UV-curable ink may stick in the printhead nozzles because of the high viscosity at low temperature. A heating facility can keep the printhead working at a certain temperature that the UV-curable ink needs.dj2400 11

Ink Types
Dotjet provides oil-based inks and UV-curable inks that perform excellent printing results on most substrates, such as porous, glossy or plastics substrates. UV-curable ink has an instant dry time as soon as being exposed to UV light.

dj2400 13
Technology SEIKO Piezo
Housing AC110-220V, 50/60HZ
Display Controller : 12” full color LCD touch screen display Print Head System : 4.3” color LCM module (Touch Screen)
Operation temperature 5°C-45°C (41°F-113°F)
Message Storage Up to 1000 messages
Print line Multiple lines depanding upon the print character size
Print speed Up to 98 feet/min (30m/minute) at 180dpi with 128/80pl print head Up to 148 feet/min (45m/minute) at 180dpi with 510/50pl print head Up to 197 feet/min (60m/minute) at 180dpi with 510/35pl print head
Max. print length 17.5mm for PT128 head 72mm for PT510 head
Print resolution 180dpi
